The SystemWeaver Test Solution provides test organizations with powerful tools for the many common test tasks such as creating tests from requirements, traceability, test execution, requirements coverage, test system management, test analysis and test scripts. And in SystemWeaver, it is all customizable. However, the views described in Working with the Test Solution do depend on a specific meta model that is hard-coded.  For the views to work properly, the SIDs listed in this article must be used. Similarly, these SIDs should not be used for other item, part and attribute types in the database.

Test Meta Model

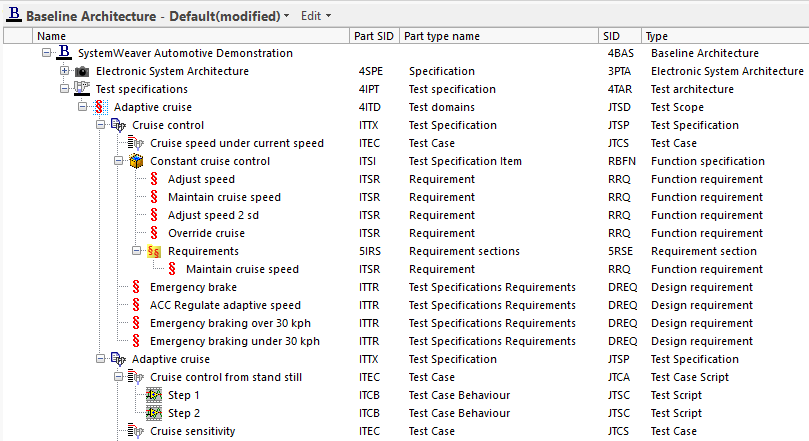

Test Development

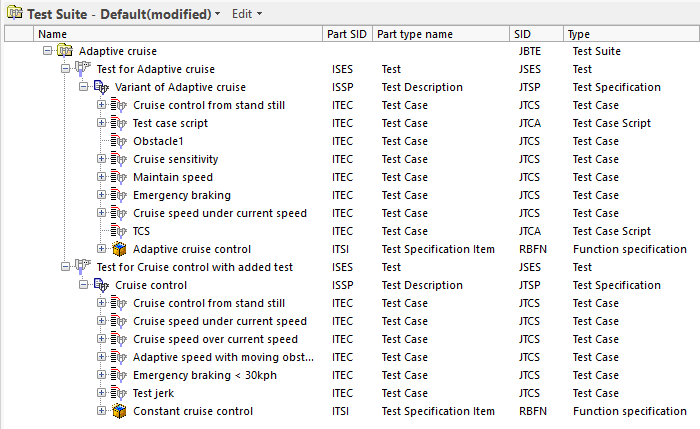

Test Execution

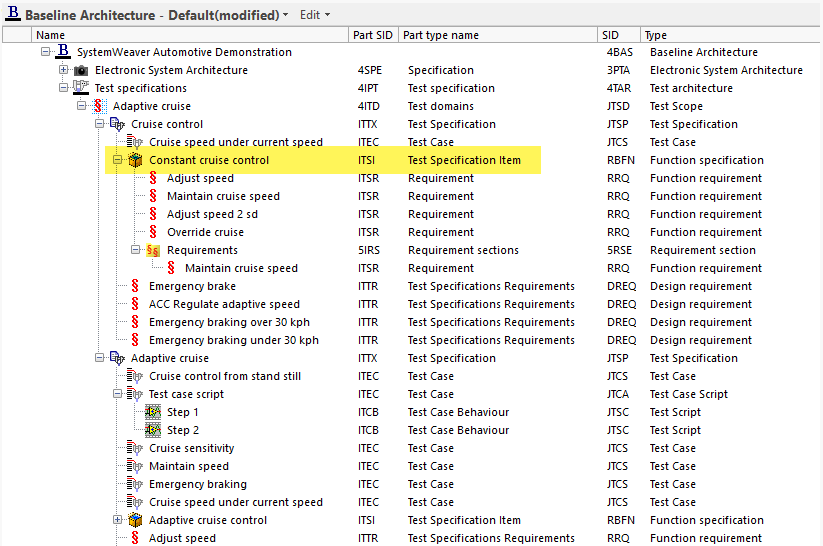

Alternatively, using abstract types for Test Scope, Test Specification and Test case.


Below is a list of the above test and verification hard-coded SIDs for Items, parts as well as the SIDs for attributes. The names can be changed, but the SIDs must remain as specified.

Item Types

Test SuiteJBTEA Test Suite represents one or many Tests. A Test Suite may include one or many sub Test Suites. This offers a flexible way of organizing many Tests, according aspects like different System under Test, different test runs or iterations, or tests performed by different organizations or persons.
TestJSESA Test represents a test of the System Under Test (SUT) as part of a Test System according to a Test Specification. The Test holds the result of the test as separate Test Status attribute values of each of the Test Cases included in the Test Specification.

In addition to the Test Status there can be additional attributes, like comments on the outcome of each Test Case.

Test SpecificationJTSP

The Test Specification (TS) contains a description about what and how something should be verified. The TS hold Test Cases and the connection to the Requirement Specification. The test that can be performed according to a TS is assumed to be possible to complete in an un-interrupted sequence. If this condition cannot be fulfilled, the TS should preferably be split into separate TSs.

Test CaseJTCSThis is a description on how something should be verified. It contains the Sequence(s) and can link to one or several requirements.
Abstract ArtifactAARThis represents the System Under Test or Test System that is being tested. Artifacts can inherit from an Abstract Artifact.
ArtifactIARThis represents the System Under Test or Test System that is being tested. This can be an instance of Abstract Artifact.
Test Case ScriptJTCAA Test Case Script is a test case that can contain Test Scripts.
Test ScriptJTSCA set of instructions that will be performed on the system under test to test that the system functions as expected. It is a single behavior of a Test Case Script.
Test ScopeJTSDA set of test cases that defines a “test project” organized as a set of test specifications. A test scope has a part relation called specification, which points to the item under test (scope).
For use with Variant Module.

Part Types

NameSIDOwnerDefining Type (DefObj)
Test DescriptionISSPJSESJTSP
Test Specification ItemITSIJTSPI
Test Specifications RequirementsITTRJTSPRQ
Test Case RequirementITRQJTCSRQ
Test SpecificationITTXJTSDJTSP
Test Case BehaviorITCBJTCAJTSC
Exists for*ITXFJTCS

* Optional. For use with SystemWeaver's Feature Model and Variability model.


Object Assigned toType and Dimension
Test Case Status (i.e., the test result)PTCSNode attribute*Enumeration, Single
Test Sequence listTSQLOn Test Case (JTCS)Custom, Single
Test Sequence Result ListTSRLNode attribute on Test Case (JTCS)*String, Single
AnnotationABANNode attribute on Test Case (JTCS)*String, Single
Development StatusDEST

Review Status3RST

Rvf Annotation (Long comment)ARANNode attribute on Test Case (JTCS)*
Test Procedure SequenceTPSQ

Test Script Reference DeprecatedTSCROn Test script (JTSC)
Test Script VersionPTSVOn Test script (JTSC)String, Single
Test Script StatusPTSSOn Test script (JTSC)Enumeration, Single
Test Script ActionTSCAOn Test script (JTSC)RVF, Single
Test Script Expected ResultTSCEOn Test script (JTSC)RVF, Single
Test Script Result CommentTSRCNode attribute on Test Script (JTSC)**Text, Single
Test Script RefTSREOn Test script (JTSC)Custom, Single

* Requires the top node for Test in the context of Test Specification (i.e., TopNode/ISSP/ITEC if standing on a test case and using the Path Query language.

** Requires the context TopNode/ISSP/ITEC/ITCB.

Extended Model SIDs

Item Types

Test ProcedureJSTP
Abstract Test ProcedureJATP
Formal Function ListJFFL

Part Types

Old Sub-Test SuiteITSS
Sub ArtifactISUA
Main Test ProcedureISVP
Sub Test ProcedureIQTP
Abstract Test Procedure TC AllocIPTA
Controlled SystemISCT

Test Views

A list of the available test views can be found in Configure the explorer. Activate the ones you would like to utilize in your system.



View pie chart of requirement coverage and test case results.

Create test

Create new tests from test specifications.


Add and remove requirements to the test specification.

Result grid

View results in grid that supports grouping by column. Includes results at test case level. If you would like to have results display at test sequence level, you can configure a grid for this.
Result historyView result from multiple tests or test suites in grid
Scope resultView result in grid that supports grouping by column.
Test ProtocolManage test results
Test case editorEdit description and test case sequences.
Test case managerCreate test cases and add/remove requirements to them.
Test configurationSet test configuration and SUT (system under test).
Create Test Plan extension viewFor use when Test Cases or Test Scripts that can have parameters need to have their values specified before the actual tests are performed.

Configuring Test Requirements Structure Tree View Setting

To ensure that the Requirements and Coverage views in the test solution work as expected, you will need to configure a "Test Requirements" structure tree view setting for the Test specification item type(s) in your test model.

To do this, open the Test specification item on a tab so that it is the top-level item.

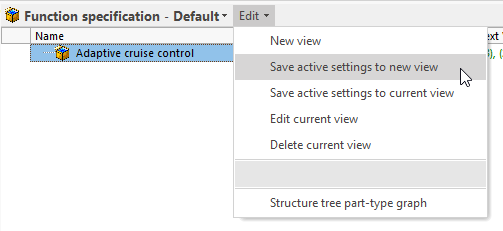

Then, right-click on the Test specification item and select Save active settings to new view. Enter the name "Test Requirements" and click OK. (For more information on creating tree view settings, see Configuring Tree View Settings.)

Note: The name of the new view must be "Test Requirements", i.e., exactly the same spelling and same case (upper and lower) of the letters.

If the structure tree setting is not created, users will not see requirements listed in the views:
